VTI-0816 Low Voltage Electrical Insulation Cleaning Agent
VTI-0816

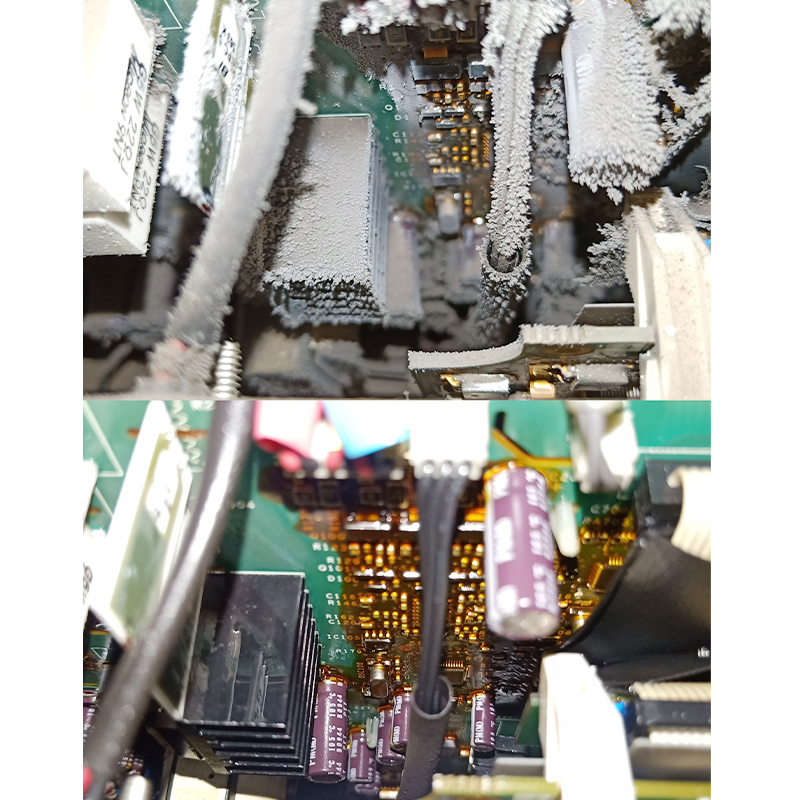

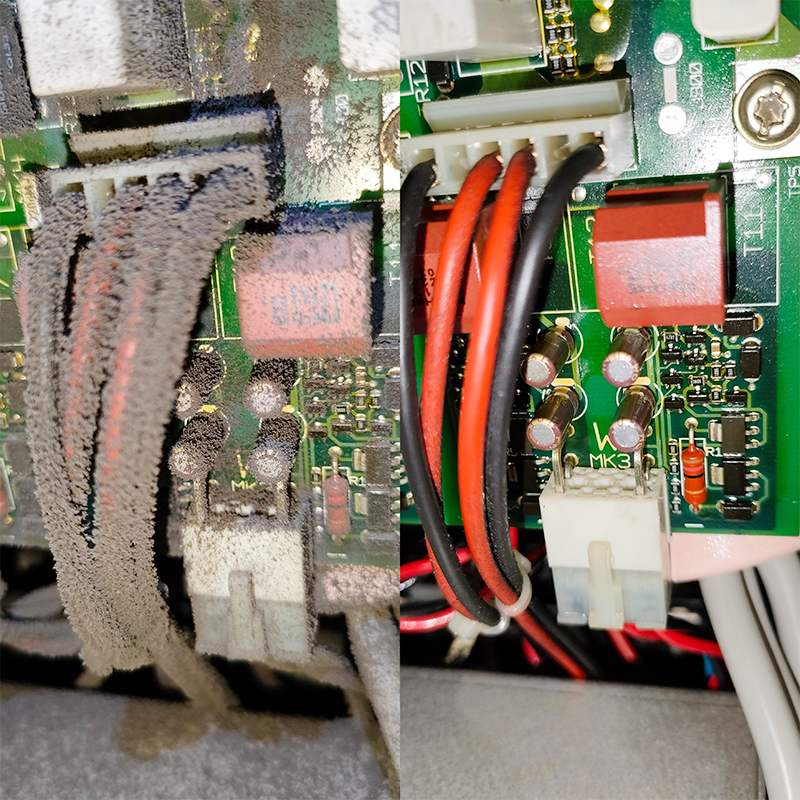

VTI-0816 low-voltage electrical insulation cleaning agent is mainly used for washing 10kV power distribution rooms, high and low voltage distribution cabinets, switch cabinets, power cabinets and various electrical equipment control cabinets (inverters, PLC control cabinets, etc.) in general industrial and mining enterprises, enterprises and institutions without power outages, effectively removing dust, ash, floating fibers, oil, salt and moisture deposited on the surface of the equipment. Improve insulation, improve heat dissipation, reduce leakage current and discharge, and restore the equipment to good operating conditions.
1. 10kV, 35kV high-voltage power distribution, primary and secondary equipment of substation systems
2. High and low voltage distribution cabinets, box transformers, dry transformers, rectifier transformers, high and low voltage switch cabinets, compensation cabinets for general enterprises and institutions; electric control cabinets, power cabinets, various electric equipment, generators, etc.
3. Low voltage control cabinets, power cabinets and other weak current equipment
35kV and below low voltage electrical insulation (live) cleaning
(environmentally friendly)
1. High insulation: power frequency breakdown voltage>35kV/2.5mm, volume resistivity>1*1013Ω.cm, withstand voltage above 220kV
2. Safety: non-hazardous chemicals, safe to use, transport and store
3. Corrosiveness: no corrosion to metals, copper, aluminum, ceramics, nylon, etc., no damage to equipment
4. Environmental toxicity: does not contain fluorine, chlorine, benzene, toluene, lead, cadmium, mercury and other toxic ingredients, does not contain ODS, is environmentally friendly, and does not damage the atmosphere
5. Toxicity: non-toxic to the human body, no irritation to glasses, skin, etc.
6. Residue insulation: tested according to GB/T 25097-2010 requirements, meets U2>U1 requirements
7. Cleaning effect: according to GB/T 25097-2010 requirements greater than 80%, the actual effect reaches 85.8%-90.9%
8. Other characteristics: The liquid is colorless and odorless, the pH value is 6.9, it does not contain water, evaporates quickly, does not burn, and does not explode.

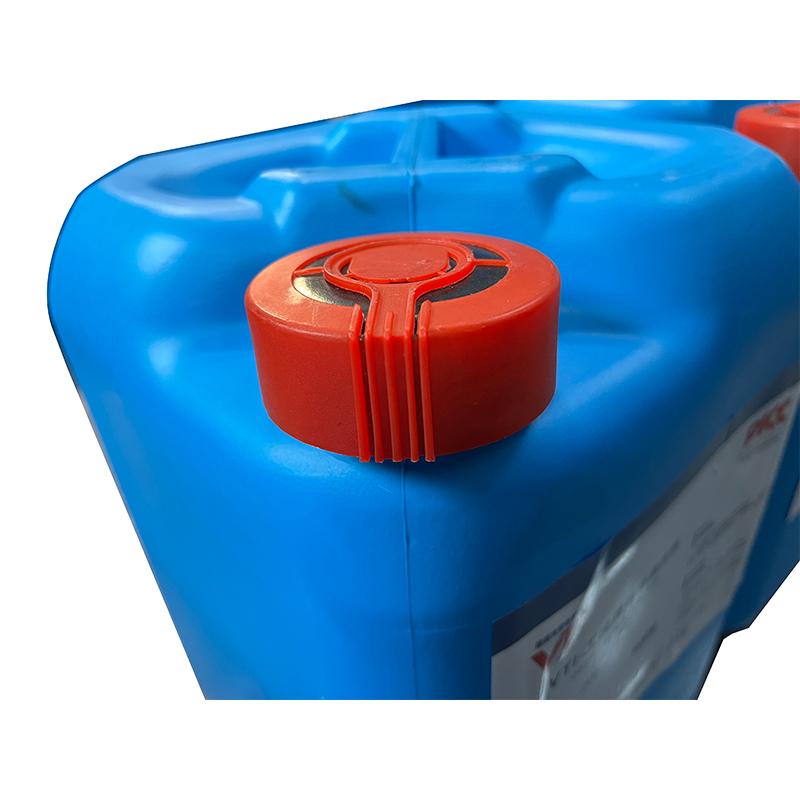

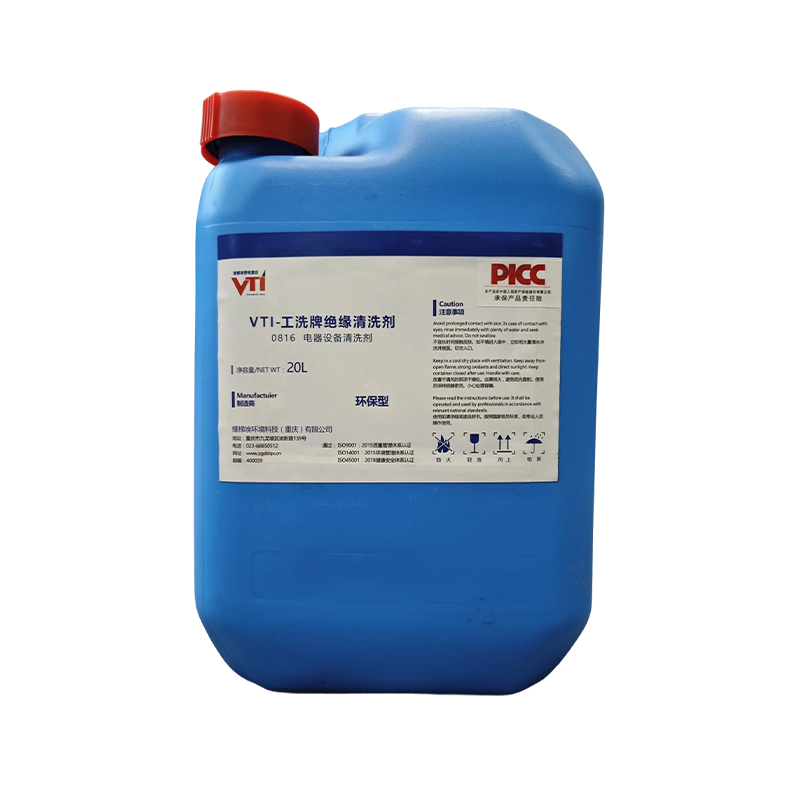

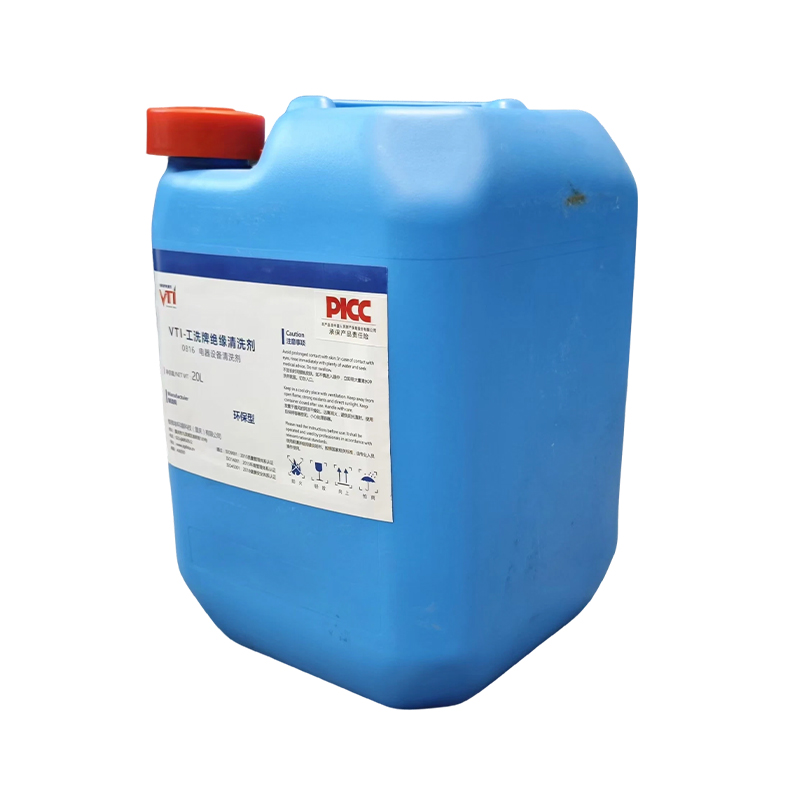

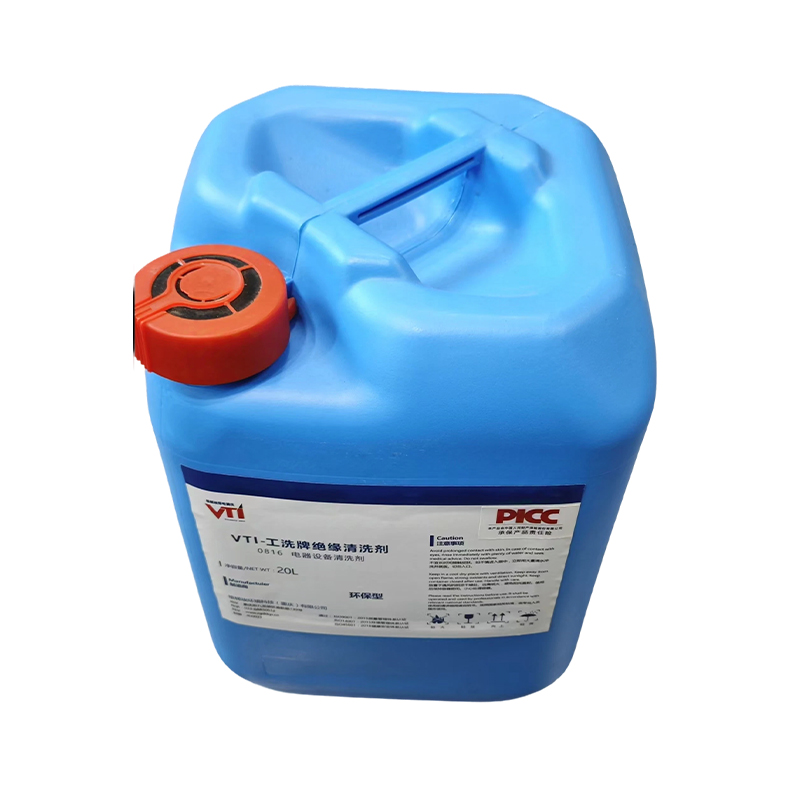

Net content: 20L/barrel
